Pumps & Fluid Handling Division
ASCO POMPE was born in 1956 as a distributor of the best global brands of pump manufacturing companies, gaining extensive experience in the volumetric and centrifugal pumps market. The brands we are dealing with are among the best known in the world for quality, reliability, innovation and assistance network.
The range of volumetric pumps is the most complete on the market: Peristaltic, membrane, internal and external gears, single screw, twin-screw, metering, triple-membrane, high pressure and emptying models. Moreover, available in horizontal or vertical version, in metal, in plastic material and with magnetic drive.
The process instruments for measuring flow, pressure, levels and temperatures complete the product catalog of the division together with the sleeve valves.
Asco pompe is equipped with a system for functional testing and performance of the volumetric pumps up to 60 m3 / h in addition to a system for the verification of flow meters.
Internal gears
The company VIKING PUMP has been a world leader in the production of rotary displacement pumps with internal gears for over a century. A simple operating principle, that is an eccentric rotor with respect to the body which drives an idle gear inside, makes the pump self-priming and suitable for conveying any fluid even with high viscosity. Present on the market with a…
- Flowrate: 363 m3/h
- Pressure: 17 barg
- Temperature: 370 °C
- Viscosity: 1.000.000 cSt
External Gears
The (or parallel) gear pumps are machines suitable for the precision dosing of clean, lubricating and non-lubricating products. A wide choice of construction materials and sealing elements allows its use in a wide range of applications with pressure, temperature and viscosity conditions. The constructive accuracy makes the self-priming…
- Flowrate: 230 L/min
- Pressure: 200 barg
- Temperature: 500°C
- Viscosity: 1.000.000 cPs
Pneumatic
The pneumatic diaphragm pumps are versatile and easy to use, suitable for a great variety of industrial and sanitary applications. They are made of metallic or plastic materials, even 100% PTFE to transfer any type of aggressive liquid. Preferred to other types of pumps for the very competitive purchase price and ease of maintenance, they are widely used both in …
- Flowrate: 1136 L/min
- Pressure: 14 barg
- Temperature: 120°C
- Viscosity: 40.000 cPs
Electric Multimembrane
Multi-membrane pump suitable for high pressure applications. Main feature that makes it unique and able to work even at high pressure in the complete absence of stress. The advantage of the membrane solution is absence of elements subject to wear such as mechanical seals, pre-mix, rings and gaskets, allowing efficient operation…
- Flowrate: 595 L/min
- Pressure: up to 356 barg
- Temperature: 149°C
Lobe
For over 50 years WAUKESHA CHERRY BURREL USA, a brand of SPX FLOW, produces self-priming pumps – with external circumferential pistons – for the food, pharmaceutical and chemical industries. As a leading manufacturer, it has defined, through continuous innovation, unequaled quality and structural standards. The distinctive feature is the rotors that…
- Flowrate: 159 m3/h
- Pressure: 34,5 barg
- Temperature: 100°C
- Viscosity: 1.000.000 cPs

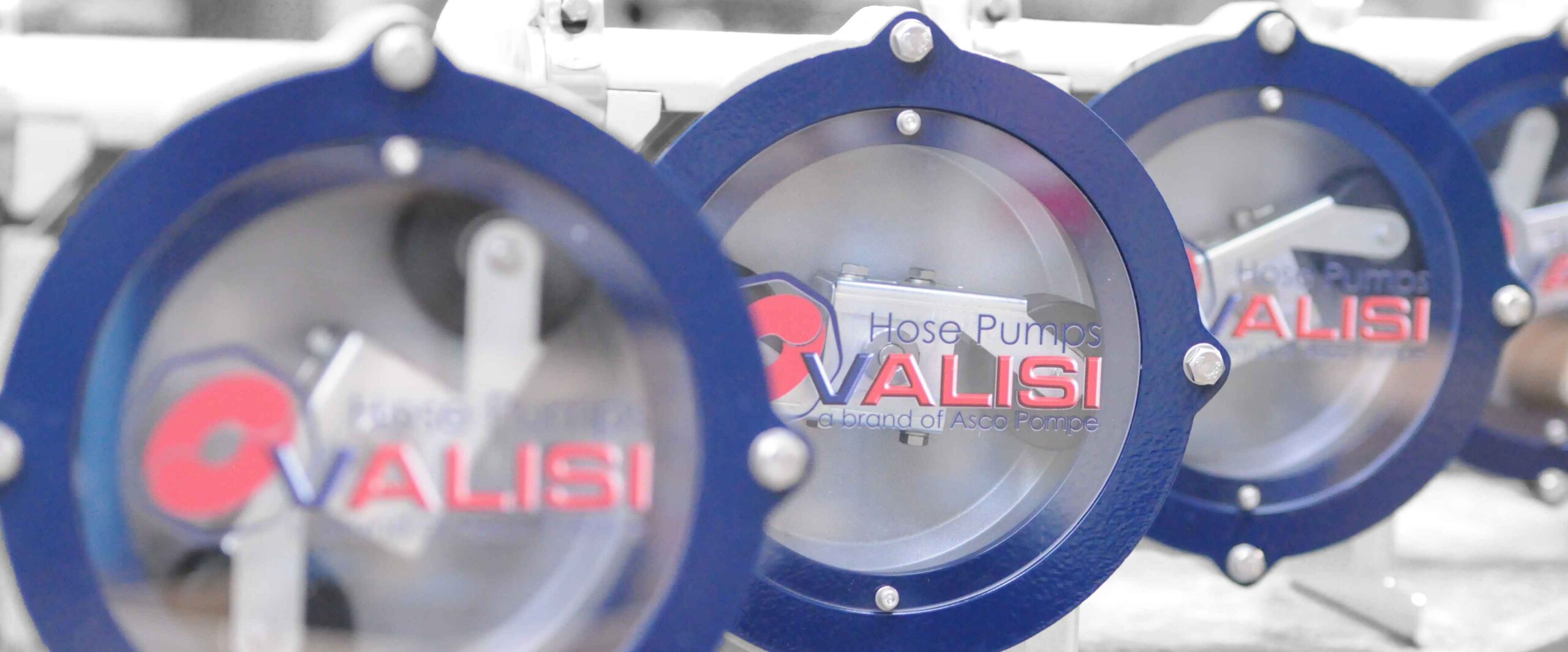

Peristaltic
VALISI peristaltic pumps cover a range of twenty eight models and three series for flow rates up to 150 m3 / h and pressures up to 15 bar. This type of pump can run dry, has no seals, is reversible, self-priming and has a high suction capacity. Two rollers or two skids alternately compress a tube, available in twelve different elastomeric materials for the widest possible…
- Flowrate: 150 m3/h
- Pressure: 15 barg
- Temperature: 100°C
- Viscosity: 1.000.000 cPs
Dosing
The dosing pumps are volumetric alternative pumps with variable flow, suitable for injecting liquids with precision, linearity and repeatability. The variety of materials, the construction accuracy and the extreme modularity of the electronic component make these pumps suitable for any flow and type of liquid. Many years of experience in addition to the…
- Flowrate: 70 m3/h
- Pressure: 1000 barg
- Temperature: 180°C
- Viscosity: 20.000 cPs
Single Screw
Progressive cavity pumps are rotary volumetric pumps with eccentric screw. Self-priming, for both clean and dirty, viscous, abrasive fluids. Flow proportional to the number of revolutions and independent of pressure (viscous fluids). Cast iron, AISI 316, Duplex st. steel, PE bodies. Rotors in carbon steel, AISI 316, AISI 410, AISI 304, Hastelloy, Duplex st. steel. Stators in …
- Flowrate: 420 m3/h
- Pressure: 48 barg
- Temperature: From -10 to 100°C
- Viscosity: 1.000.000 cPs
Double screw
Double screw pumps are volumetric pumps, where the displaced volume corresponds to the space enclosed between the threads and the grooves of two screws placed next to each other (so as to intertwine) and the stator. The innovative design of double-screw pumps with dual-flow rotors eliminates axial tensions due to pressurization of the process….
- Flowrate: 500 m3/h
- Pressure: 40 barg
- Temperature: From -10 to 350°C
- Viscosity: 1.000.000 cPs
Centrifugal
Asco pompe is historically known as a leader in the Italian market of volumetric pumps but has progressively expanded its product portfolio in the centrifugal pumps sector. The range includes “non-metallic” executions, resin pumps loaded with glass fiber, teflon pumps and the most classic thermoplastic pumps (PP, PVC, PVDF). The challenge currently…
- Flowrate: 2.200 m3/h
- Pressure: 150 m
- Temperature: 350°C
- Viscosity: 100.000 cPs
Linearizers
The linearizers are used to reduce the flow and pressure pulsations caused by alternative pumps (pneumatic and electric membrane, metering, piston, peristaltic, …).
They use a flexible membrane to separate the liquid chamber to be treated from the compressed air supply and are mounted as close as possible to the pump…
- Pressure: 1274 barg
- Temperature: 204°C
- Viscosity: 25.000 cPs
Parts
Asco Pompe is able to supply universal spare parts for all types of pumps. In particular spare parts for single-screw and pneumatic pumps with high quality standards and ready for delivery. Thanks to our logistics and a well-stocked warehouse, we are able to guarantee…
