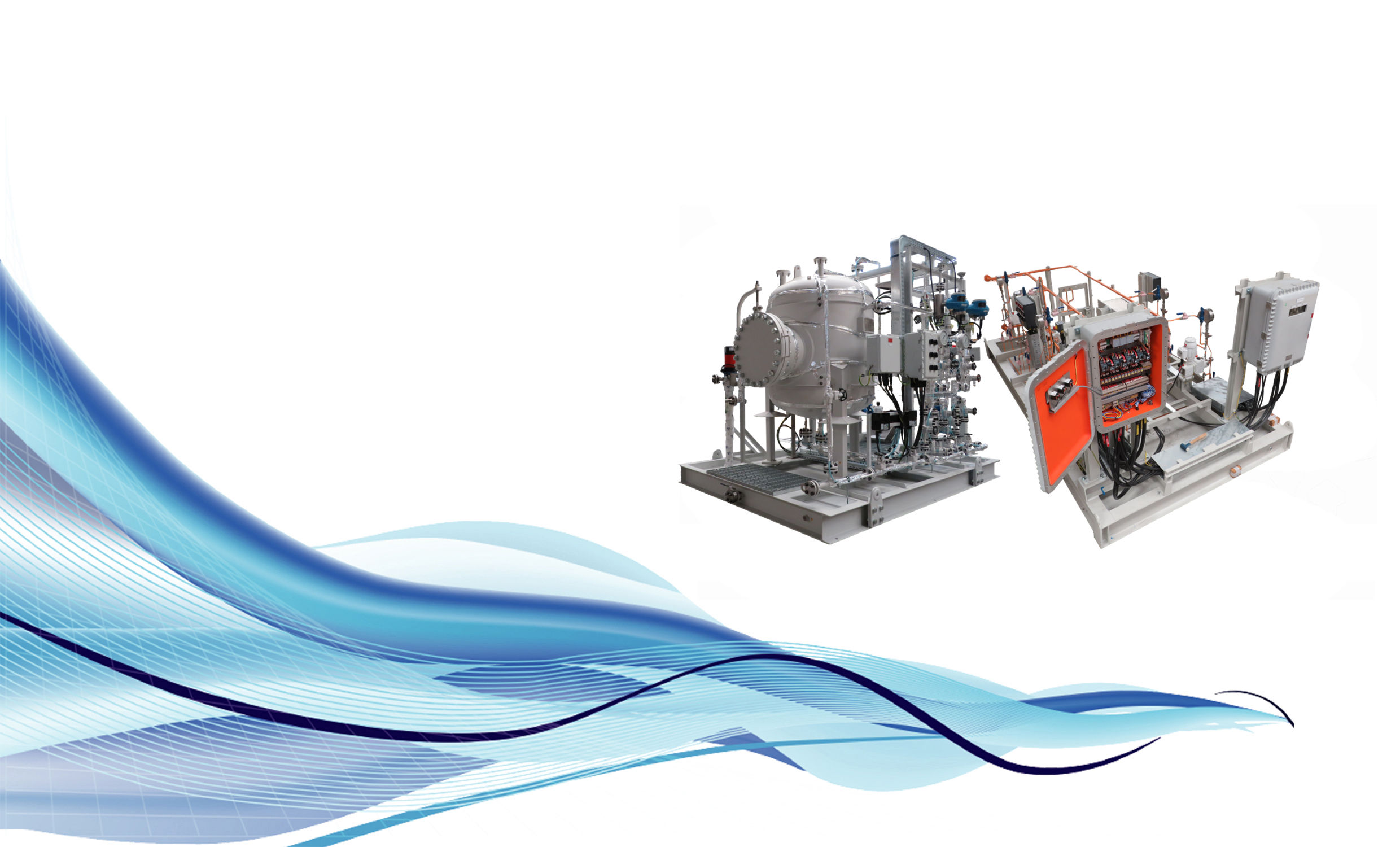

Chemical Injection Packages
Chemical Injection packages are the instrument to implement a chemical treatment program in oil & gas industry (upstream and downstream), water treatment field, power generation and in any field where it is required the injection of an additive to a specific process. These units are specifically designed to dose a precise and accurate amount of a chemical into a system at a required pressure either continuously or intermittently.


Pressure and Atmospheric Tanks
- Pressure Vessels designed and manufactured in accordance to ASME VIII Div.1 Standard
- Cylindrical and rectangular chemical storage tanks with optional blanketing system and safety / breathing valves
- Materials: Stainless steel (ASTM AISI 304 and 316 Grade), Carbon steel (with optional internal coating), Glass Reinforced Plastic (GRP), PP and HDPE
- NDE: Dye Penetrant Test (DPT), Radiographic Test (RT), Positive Material Identification (PMI)
- Paint Systems from Low to Very High atmospheric corrosivity categories
For further information: Contact Us


Baseplates and Structures
- Steel Structures, assembled or fully welded, including stairs, platforms e piping supports, entirely designed by ASCO
- Complete with gratings, drain pans and containment bunds
- Materials: S275/375JR – S275/375J2 (Low Temperature) – Stainless Steel
- NDE: Dye Penetrant Test (DPT), Magnetic Test (MT)
- Paint Systems from Low to Very High atmospheric corrosivity categories
For further information: Contact Us


Piping Lines
- Welded piping spools in accordance to ASME IX BPVC Code
- Qualified welding procedures and operators by Accredited Third Party
- Materials: SS AISI 304, SS AISI 316, LTCS, Carbon Steel (optional internal lining), PVDF, GRP, PP, PE, PVC
- NDE: Dye Penetrant Test (DPT), Radiographic Test (RT), Positive Material Identification (PMI)
- Hydrostatic test spool by spool in accordance to ASME B31.3
- Paint Systems from Low to Very High atmospheric corrosivity categories
For further information: Contact Us


Dosing Pumps
- Single/Double Diaphragm & Piston Dosing Pumps, designed and tested in accordance to API 675 e 674 Standards
- Diaphragm rupture monitoring systems – by PG or by Sensor
- Manual and Remote Stroke adjustment
- Suitable for operations in Hazardous Area – ATEX, EAC Ex 012
For further information: Contact Us


Instrumentation
- Safety Valves in accordance to API 520, 526 Standards
- Pressure, Level, Flowrate, Temperature Gauges and Transmitters
- Suitable to Hazardous Area – ATEX, EAC Ex 012
- Wiring in accordance to EN 60204-1 & EN 60079-14 Standards
For further information: Contact Us


Control Panels
- Control Panels for Local/Remote control of skids
- Local visualization of process data
- Automation by PLC
- Special executions for Hazardous Area – ATEX, EAC Ex 012
- Wiring in accordance to EN 60204-1 & EN 60079-14 Standards
For further information: Contact Us


Heat tracing & Insulation
- Electrical Heat Tracing – Self regulating cables
- Process Temperature Maintaining or Anti-Freezing
- GRP Junction Boxes, Thermostat and Local Control Panels
- Insulation in Rockwool or Glass wool – Stainless Steel or Aluminum Sheet
For further information: Contact Us


In-house Engineering
- Team of Engineers well trained in last generation 3D CAD Design
- Detailed modelling of structures, piping lines, equipment, cable ways and cable routing
- Errors Minimization and close connection with manufacturing department
For further information: Contact Us
